Auxiliary Heater RF Receiver -R64- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

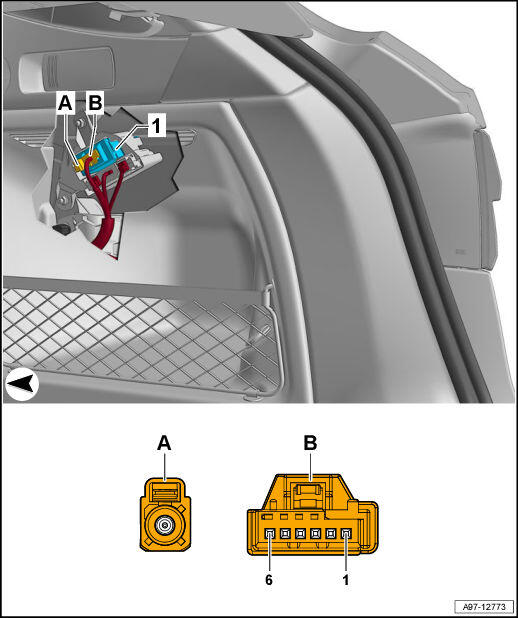

Component Location
In right luggage compartment, behind side panel trim.
- 1 - Auxiliary Heater RF Receiver -R64-
- A -
2-Pin Connector -T2dc-, naturally cloudy
- from the Auxiliary Heater Antenna -R182- In the Roof Antenna -R216-
- B - 6-Pin Connector -T6y-, blue
