Special Purpose Vehicle Control Module -J608- COMPONENT LOCATION AND CONNECTOR END VIEW

Component Location

In left luggage compartment, behind luggage compartment side panel trim.

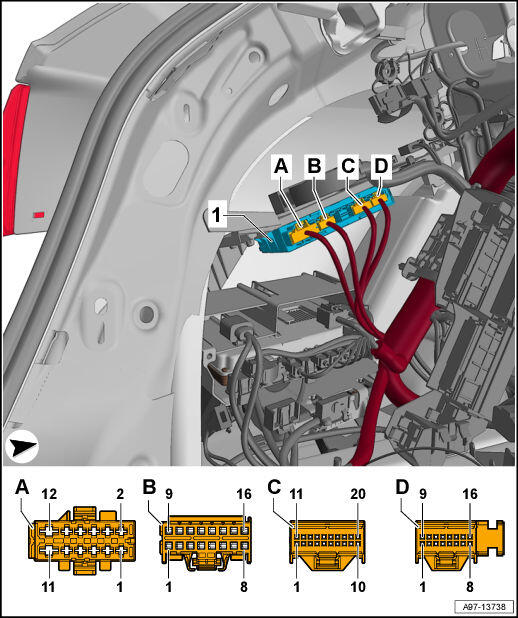

Fig 1: Special Purpose Vehicle Control Module -J608- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Special Purpose Vehicle Control Module -J608-
• A -  12-Pin Connector -T12o-, black
• B -  16-Pin Connector -T16d-, black
• C -  20-Pin Connector -T20k-, black
• D -  16-Pin Connector -T16e-, black
