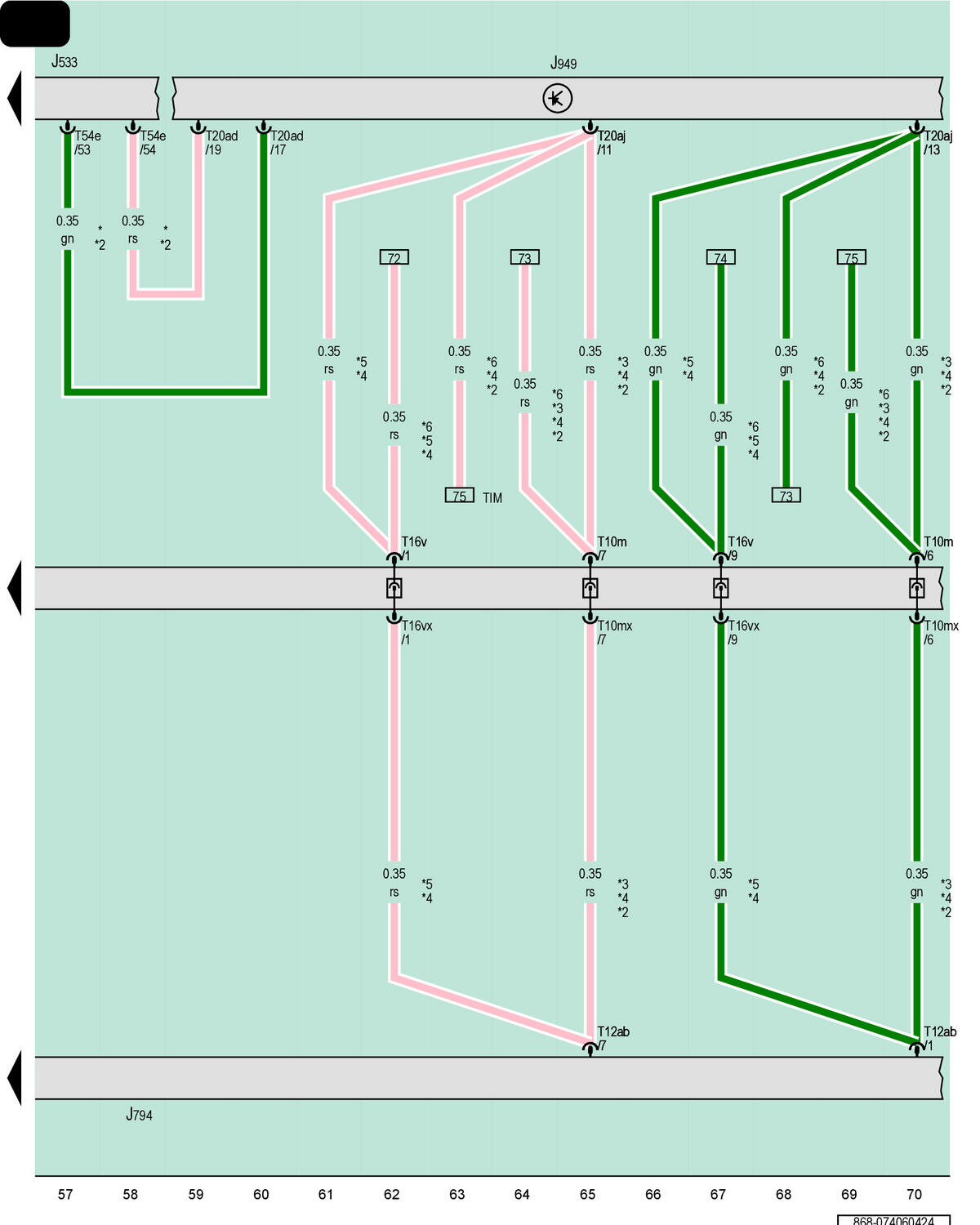

Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T12ab

12-Pin Connector, Green

T16v

16-Pin Connector, Brown

T16vx

16-Pin Connector, Brown

T20ad

20-Pin Connector, Black

T20aj

20-Pin Connector, Naturally Cloudy

T54e

54-Pin Connector, Gray

TIM

Coupling Point in Interior, Center

*

Ethernet Connection

*2

From July 2019

*3

Through November 2019

*4

Audio Bus Data Bus Wire

*5

From December 2019

*6

For Vehicles with Bang & Olufsen Sound System
