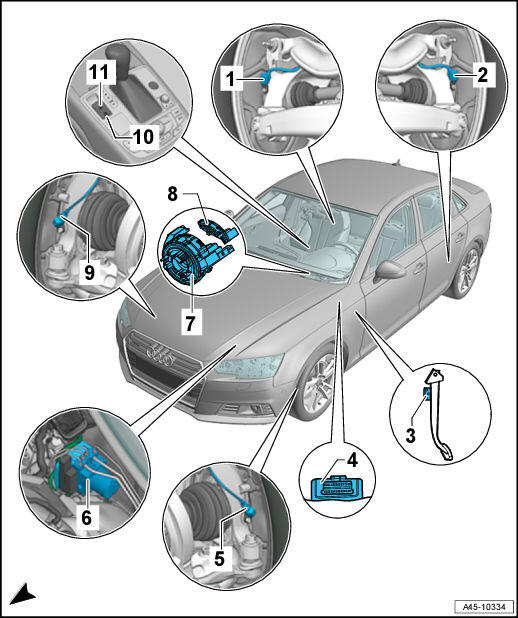

Comp. LOC. Abs: Overview
- 1 - Right Rear ABS Wheel Speed Sensor -G44-
- 2 - Left Rear ABS Wheel Speed Sensor -G46-
- 6 - ABS hydraulic unit -N55-
- 8 -
Steering angle sensor -G85-
- Installed under the steering wheel
- 9 - Right front ABS wheel speed sensor -G45-
- 10 - Switch module in instrument panel, center -EX22-
- 10 - ASR/ESP button -E256-
- 10 - Hill descent control button -E618-
- 11 - Electromechanical parking brake button -E538-
- 11 - -AUTO HOLD- button -E540-
