Front Information Display Control Head -J685- COMPONENT LOCATION AND CONNECTOR END VIEW

Component Location

In centre instrument panel.

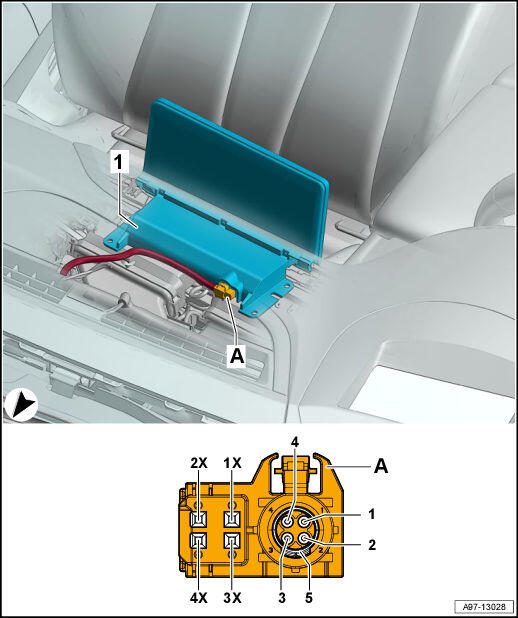

Fig 1: Front Information Display Control Head -J685- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Front Information Display Control Head -J685-
• A -  9-Pin Connector -T9a-, black
  • only with MMI radio
  • Through June 2019
• A -  9-Pin Connector -T9b-, blue
  • only for MMI Navigation plus
  • Through June 2019
• A -  9-Pin Connector -T9p-, black
  • only for MMI (Information Electronics 1)
  • From July 2019
