Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872- COMPONENT LOCATION AND CONNECTOR END VIEW

Component Location

In the seat backrest.

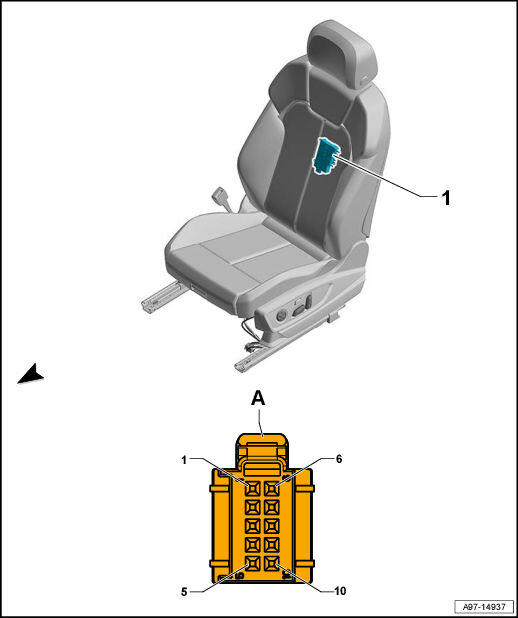

Fig 1: Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Front Multicontour Seat Control Module Driver's Side -J873- / Front Multicontour Seat Control Module Front Passenger's Side -J872-
• A -  10-Pin Connector -- :T10af  / :T10ag  , black
  • 10-Pin Connector -T10af- on Front Multicontour Seat Control Module Driver's Side -J873-
  • 10-Pin Connector -T10ag- on Front Multicontour Seat Control Module Front Passenger's Side -J872-
