Instrument Cluster Control Module -J285-, WITH VIRTUAL COCKPIT (9S8), THROUGH JUNE 2019: Notes

Component Location

In driver's instrument panel.

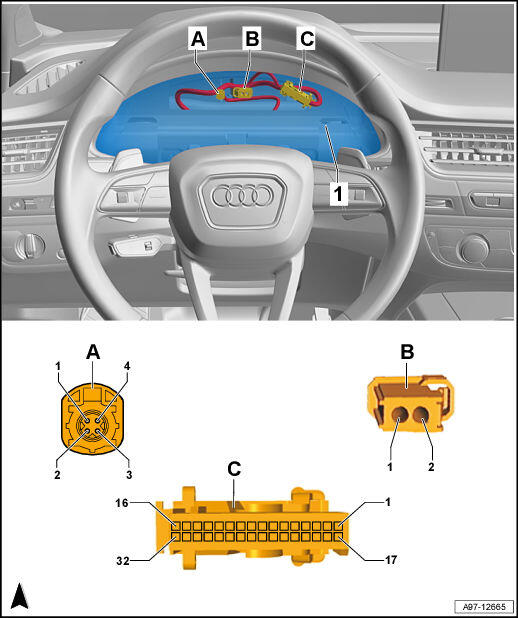

Fig 1: Instrument Cluster Control Module -J285-, With Virtual Cockpit (9S8), Through September 2019 Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Instrument Cluster Control Module -J285-
• A -  4-Pin Connector -T4bd-, black
• B -  2-Pin Connector -T2dx-, black
  • MOST Bus
• C -  32-Pin Connector -T32f-, gray
