Particulate sensor -G784- COMPONENT LOCATION AND CONNECTOR END VIEW: Notes

Component Location

On underbody

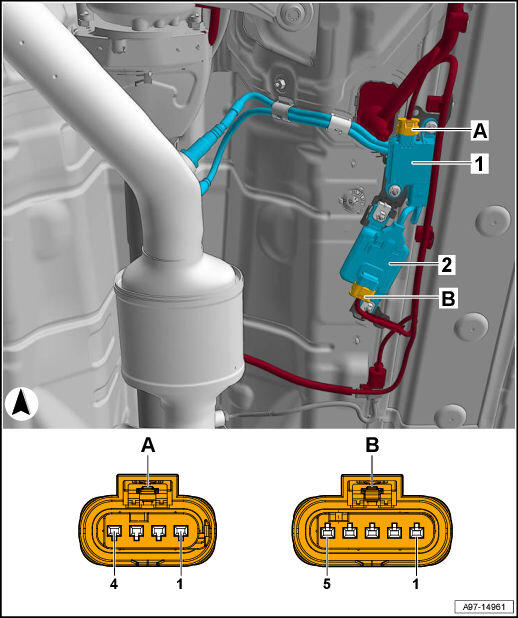

Fig 1: Particulate Sensor -G784- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

• 1 -  Particulate sensor -G784-
• 2 -  Ignore
• A -  4-Pin Connector -T4s-, black
• B -  Ignore
