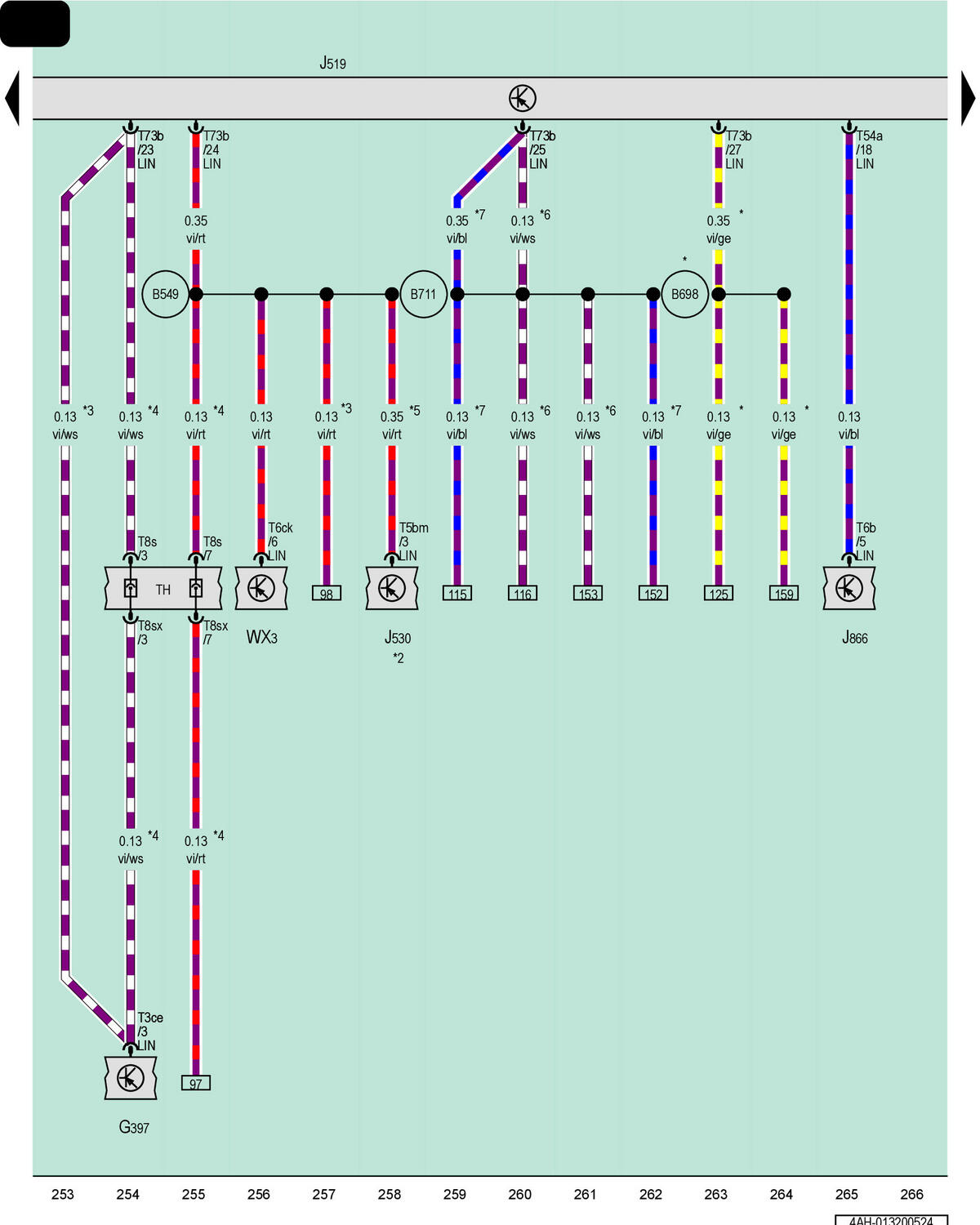

Rain/Light Recognition Sensor, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Power Adjustable Steering Column Control Module, Front Roof Module
G397
Rain/Light Recognition Sensor
J519
Vehicle Electrical System Control Module
J530
Garage Door Opener Control Module
J866
Power Adjustable Steering Column Control Module
T3ce
3-Pin Connector, Black
T5bm
5-Pin Connector, Black
T6b
6-Pin Connector, Brown
T6ck
6-Pin Connector, Black
T8s
8-Pin Connector, Black
T8sx
8-Pin Connector, Black
T54a
54-Pin Connector, Black
T73b
73-Pin Connector, Black, Black
TH
Coupling Point on Roof
WX3
Front Roof Module
B549
LIN Bus Connection 2 (in Main Wiring Harness)
B698
LIN Bus Connection 3 (in Main Wiring Harness)
B711
LIN Bus Connection 6 (in Main Wiring Harness)
*
For Vehicles with Ambient Lighting
*2
Refer to Applicable Wiring Diagram for the Garage Door Opener
*3
For Vehicles Without Driver Assistance Systems Front Camera
*4
For Vehicles with Driver Assistance Systems Front Camera
*5
For Vehicles with Garage Door Opener
*6
Omitted as a Running Change
*7
Running Change
