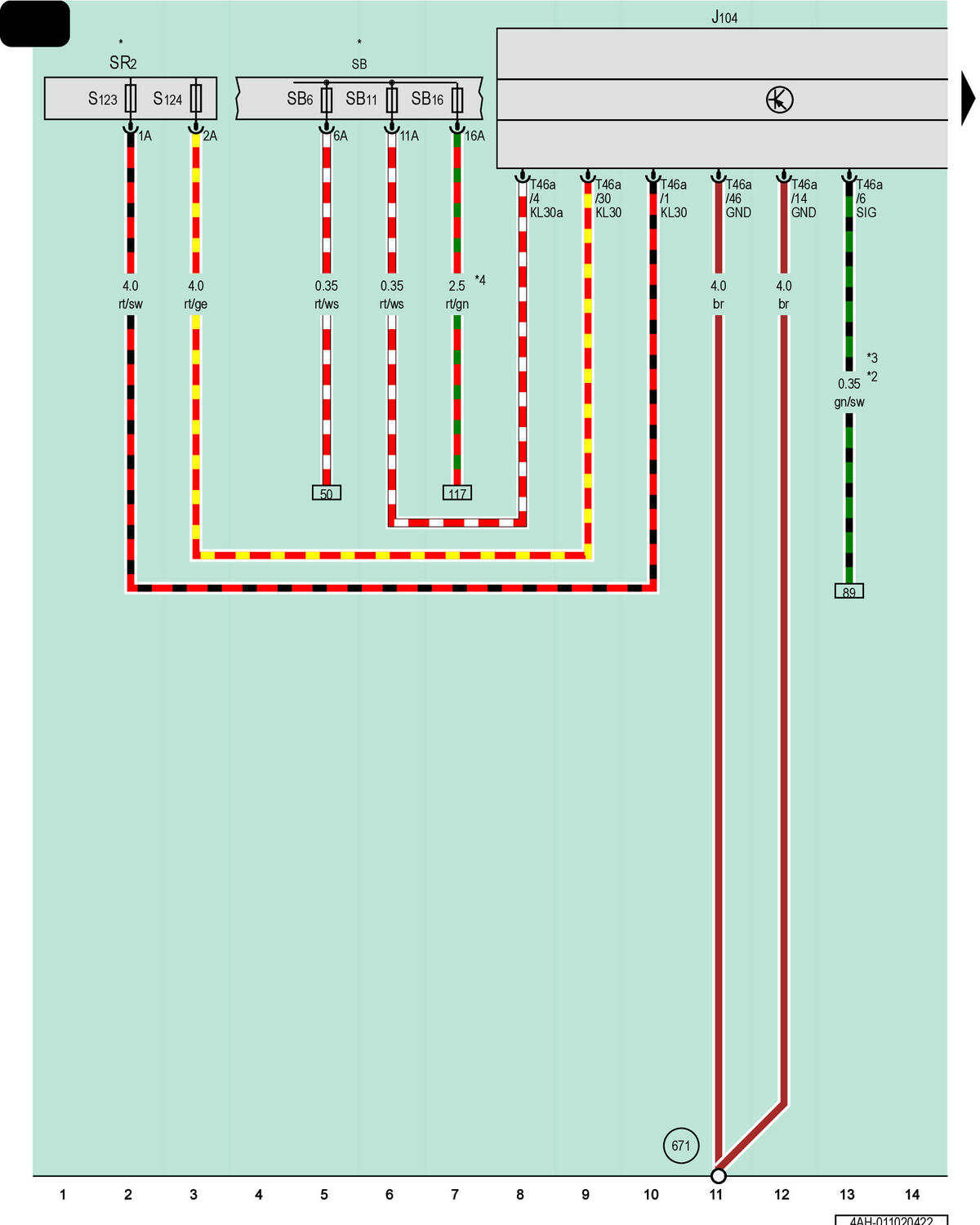

Abs Control Module, Relay And Fuse Panel 2, Abs Control Module Fuse 1, Abs Control Module Fuse 2

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

SB

Fuse Panel B

SR2

Relay and Fuse Panel 2

SB6

Fuse 6 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

SB16

Fuse 16 (On Fuse Panel B)

S123

ABS Control Module Fuse 1

S124

ABS Control Module Fuse 2

T46a

46-Pin Connector, Black

671

Ground Connection 1 on Left Front Longitudinal Member

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

For Vehicles Without Traffic Jam Pilot

*3

For Vehicles Without Hybrid Drive

*4

For Vehicles with Hybrid Drive
