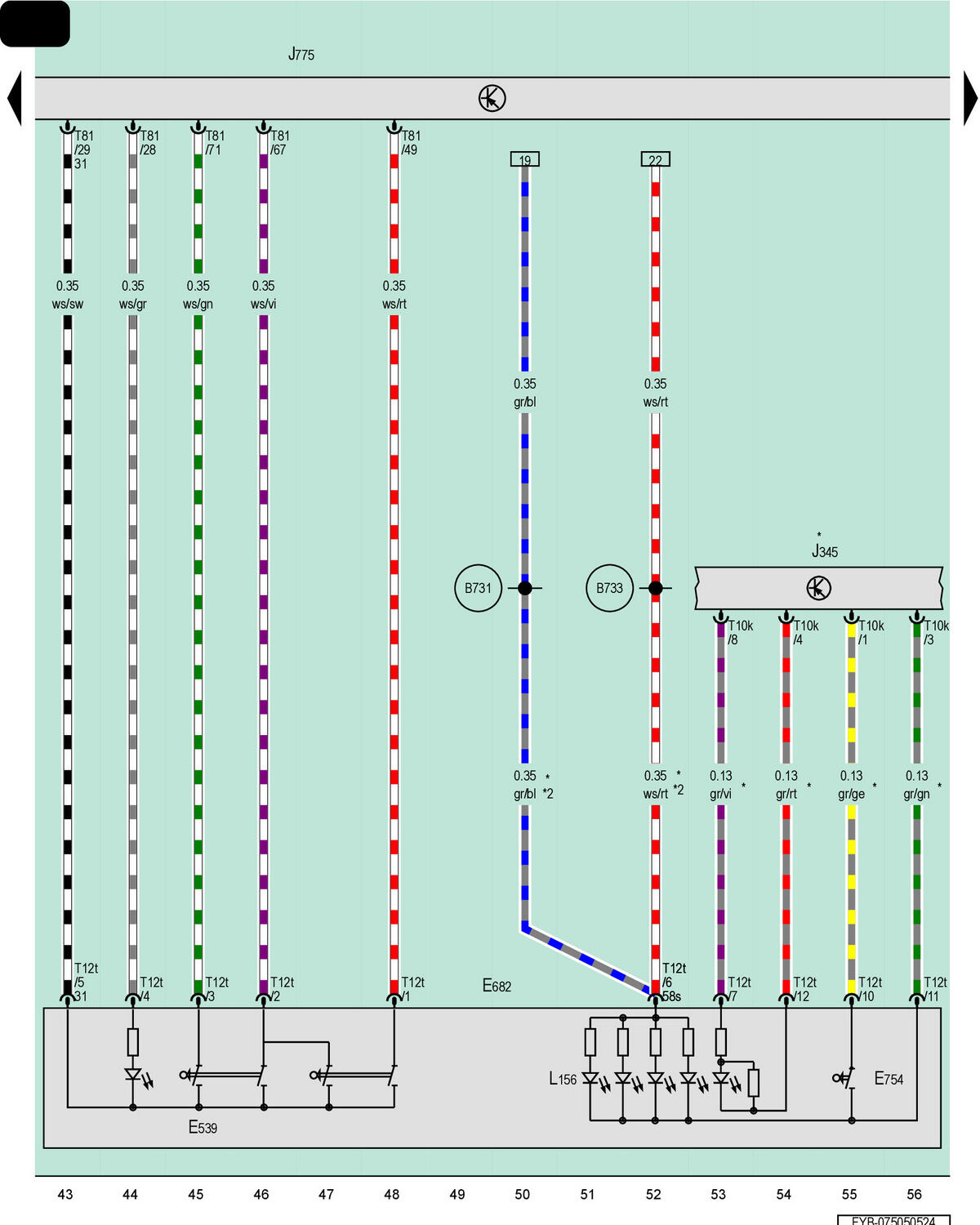

Load Level Button, Loading Sill Lowering Control Head, Trailer Hitch Release Button, Towing Recognition Control Module, Drivetrain Control Module

GWWFYB-075050524Courtesy of AUDI OF AMERICA, LLC

E539

Load Level Button

E682

Loading Sill Lowering Control Head

E754

Trailer Hitch Release Button

J345

Towing Recognition Control Module

J775

Drivetrain Control Module

L156

Switch Illumination Bulb

T10k

10-Pin Connector, Red

T12t

12-Pin Connector, Black

T81

81-Pin Connector, Black

B731

Connection 58s (in Main Wiring Harness) 1

B733

Connection 58s (in Main Wiring Harness) 3

Power Pivoting Trailer Hitch

*2

Depending on Equipment
