Overhead Camera

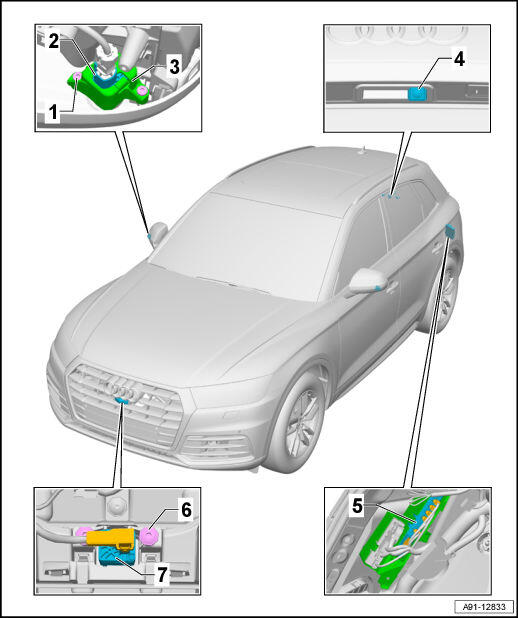

Fig 1: Identifying Overhead Camera Components
GWWA91-12833Courtesy of AUDI OF AMERICA, LLC
  1. 2 -  Right peripheral camera -R245-
  2. 2 -  Left peripheral camera -R244- RH shown, LH similar
  3. 4 -  Rear peripheral camera -R246-
  4. 5 -  Peripheral camera control module J928
  5. 7 -  Front peripheral camera -R243-
