Radiator Fan Control Module -J293- / -J671-, With 800 Watt Or 1200 Watt: Notes

Component Location

On Cooler.

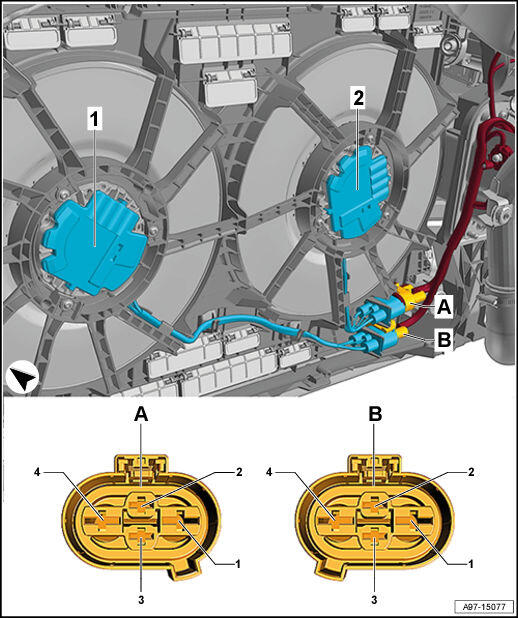

Fig 1: Radiator Fan Control Module -J293- / -J671- Component Location And Connector End View (With 800 Watt Or 1200 Watt)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Radiator Fan Control Module -J293-
2. 2 -  Radiator Fan Control Module 2 -J671-
3. A -  4-Pin Connector -T4bk-, black
4. A -  4-Pin Connector -T4or-, black
5. B -  4-Pin Connector -T4bi-, black
