Radiator Fan Control Module -J293-, With 400 Watt Or 600 Watt: Notes

Component Location

On Cooler.

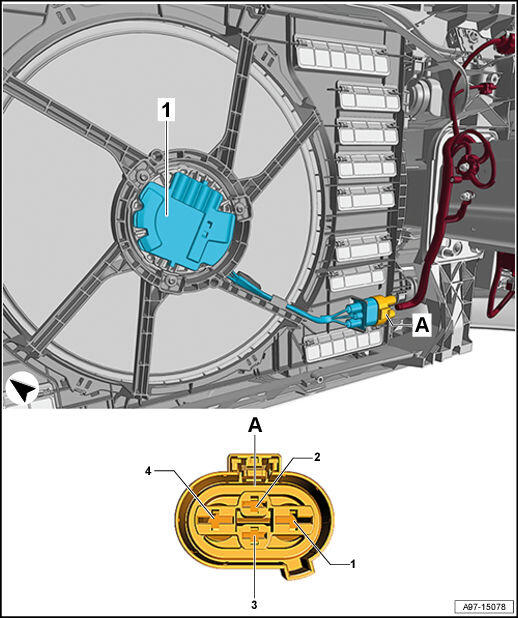

Fig 1: Radiator Fan Control Module -J293- Component Location And Connector End View (With 400 Watt Or 600 Watt)
GWWA97-15078Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Radiator Fan Control Module -J293-
  2. A -  4-Pin Connector -T4bi-, black
