A/C Compressor Control Module -J842- Component Location And Connector End View: Notes

Component Location

in front left in engine compartment.

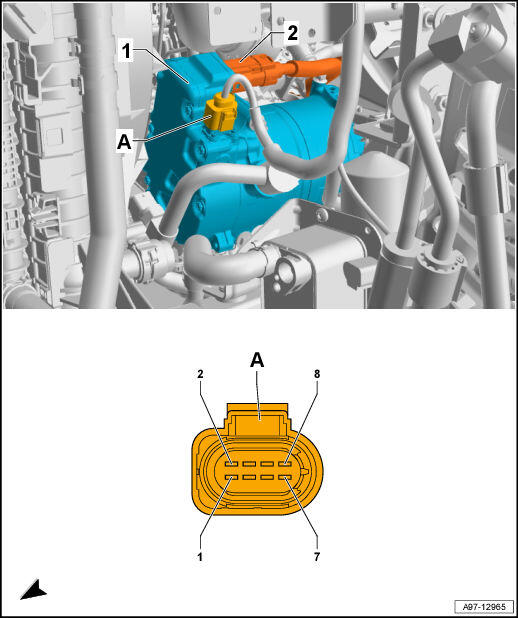

Fig 1: A/C Compressor Control Module -J842- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  A/C Compressor Control Module -J842-
2. 2 -  Electrical A/C Compressor High Voltage Cable -P3-
3. A -  8-Pin Connector -T8dg-, black
