Abs Control Module -J104- Component Location And Connector End View: Notes

Component Location

In engine compartment, left.

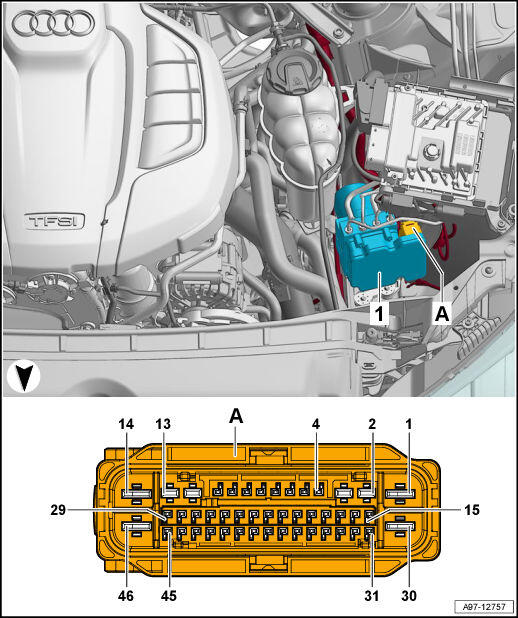

Fig 1: ABS Control Module -J104- Component Location And Connector End View
GWWA97-12757Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  ABS Control Module -J104-
  2. A -  46-Pin Connector -T46-, black
