All-Wheel Drive Control Module -J492- Component Location And Connector End View: Notes

Component Location

On transmission.

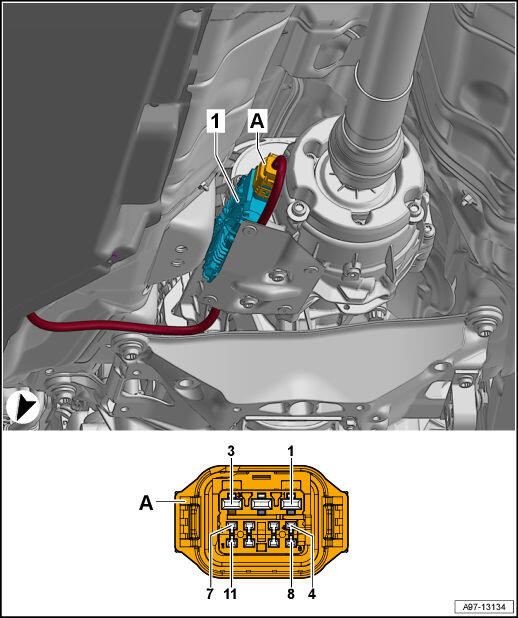

Fig 1: All-Wheel Drive Control Module -J492- Component Location And Connector End View
GWWA97-13134Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  All-Wheel Drive Control Module -J492-
  2. A -  11-Pin Connector -T11b-, black
