Automatic Glow Time Control Module -J179-, FOR ENGINE CODES DMGA, DMKC: Notes

Component Location

In the Engine Compartment, Center, near the Oil Filter.

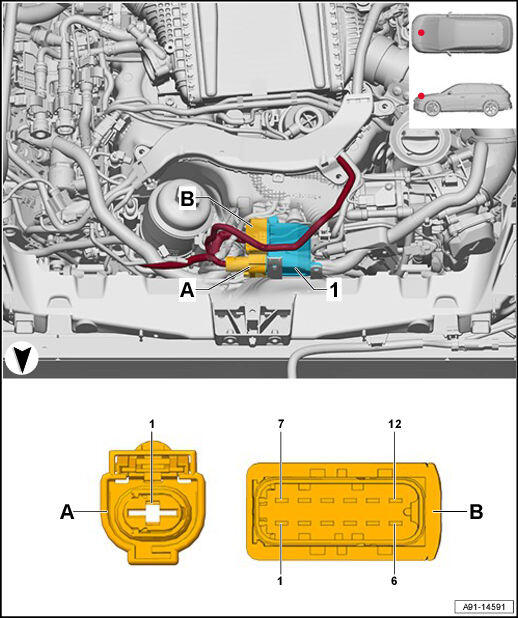

Fig 1: Automatic Glow Time Control Module -J179- Component Location And Connector End View (DMGA, DMKC)

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Automatic Glow Time Control Module -J179-
2. A -  1-Pin Connector -T1zqw-, black
3. B -  12-Pin Connector -T12i-, black
