Auxiliary Heater Control Module -J364- Component Location And Connector End View: Notes

Component Location

In front right wheel housing, on long member.

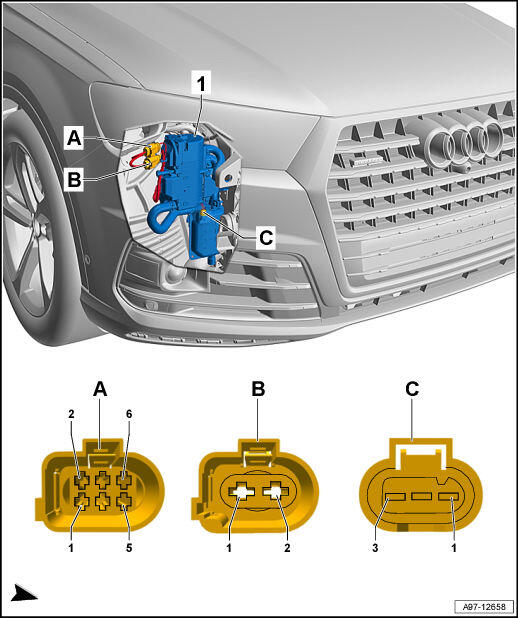

Fig 1: Auxiliary Heater Control Module -J364- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Auxiliary Heater Control Module -J364-
2. A -  6-Pin Connector -T6z-, black
3. B -  2-Pin Connector -T2da-, brown
4. C -  3 Pin Connector -T3au-, black
