Control Unit For Electric Compressor -J1123- Component Location And Connector End View: Notes

Component Location

In front left in engine compartment.

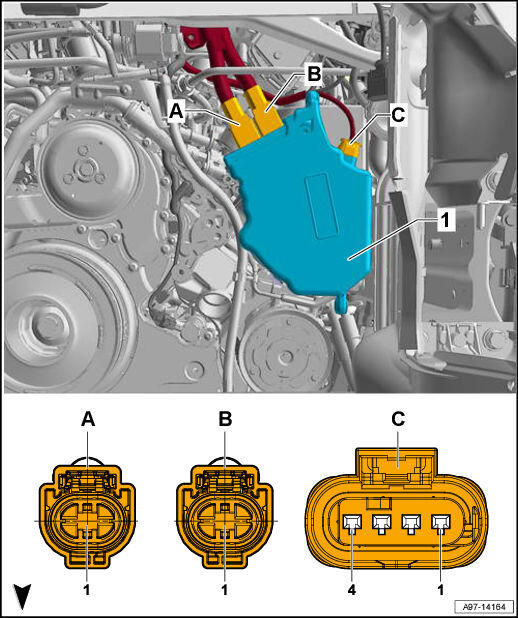

Fig 1: Control Unit For Electric Compressor -J1123- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Control unit for electric compressor -J1123-
2. A -  1-Pin Connector -T1gd-, black
3. B -  1-Pin Connector -T1ge-, black
4. C -  4-Pin Connector -T4iv-, black
