Distance Regulation Control Module 2 -J850- Component Location And Connector End View: Notes

Component Location

Behind bumper, front left.

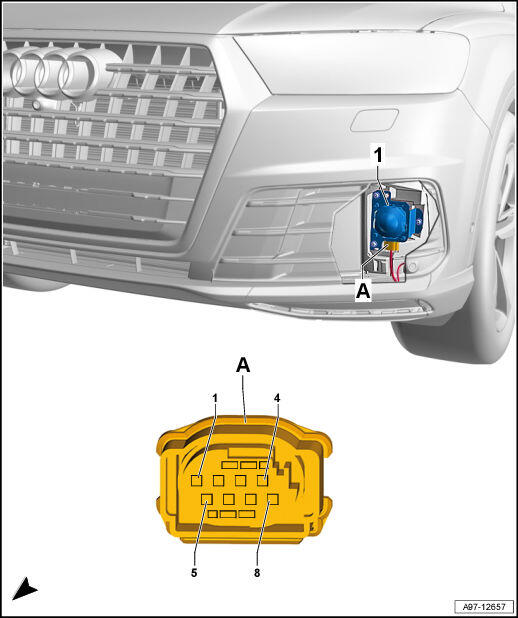

Fig 1: Distance Regulation Control Module 2 -J850- Component Location And Connector End View
GWWA97-12657Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Distance Regulation Control Module 2 -J850-
  2. A -  8-Pin Connector -T8s-, black
