Engine Control Module (ECM) -J623-, 196-PIN

Component Location

In engine compartment, left.

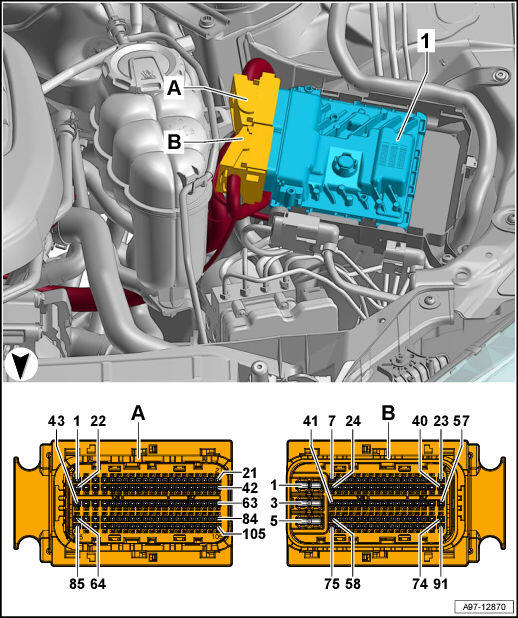

Fig 1: Engine Control Module (ECM) -J623-, 196-Pin Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Engine Control Module (ECM) -J623-
2. A -  105-Pin Connector -T105-, black
3. B -  91-Pin Connector -T91-, black
