Engine Control Module (ECM) -J623-, 315-PIN

Component Location

In engine compartment, left.

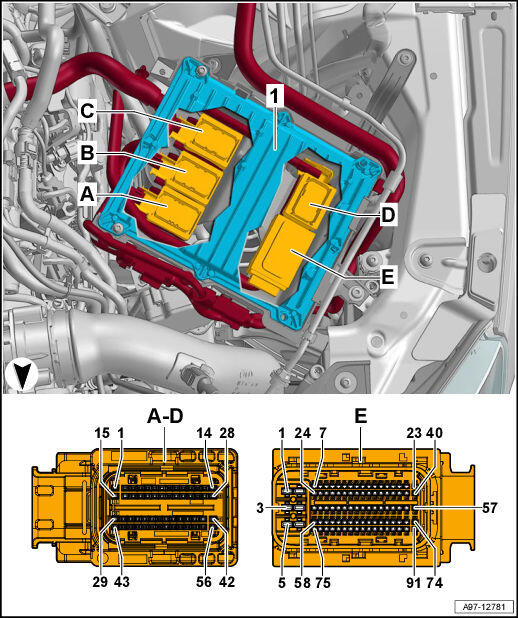

Fig 1: Engine Control Module (ECM) -J623-, 315-Pin Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Engine Control Module (ECM) -J623-
2. A -  56-Pin Connector -T56d-, black
   • Contact carrier colour: purple
3. B -  56-Pin Connector -T56c-, black
   • Contact carrier colour: blue
4. C -  56-Pin Connector -T56b-, black
   • Contact carrier colour: white
5. D -  56-Pin Connector -T56a-, black
   • Contact carrier colour: black
6. E -  91-Pin Connector -T91-, black
