Engine Control Module (ECM) -J623-, 336-PIN

Component Location

In engine compartment, left.

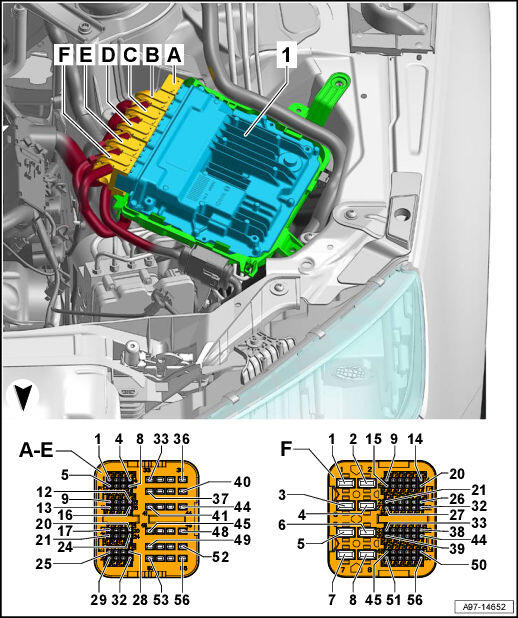

Fig 1: Engine Control Module (ECM) -J623-, 336-Pin Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Engine Control Module (ECM) -J623-
2. A -  56-Pin Connector -T56a-, black
   • Contact carrier colour: black
3. B -  56-Pin Connector -T56b-, black
   • Contact carrier colour: white
4. C -  56-Pin Connector -T56c-, black
   • Contact carrier colour: blue
5. D -  56-Pin Connector -T56d-, black
   • Contact carrier colour: purple
6. E -  56-Pin Connector -T56e-, black
   • Contact carrier colour: green
7. F -  56-Pin Connector -T56f-, black
   • Contact carrier colour: black
