Power Steering Control Module -J500- Component Location And Connector End View: Notes

Component Location

On steering box.

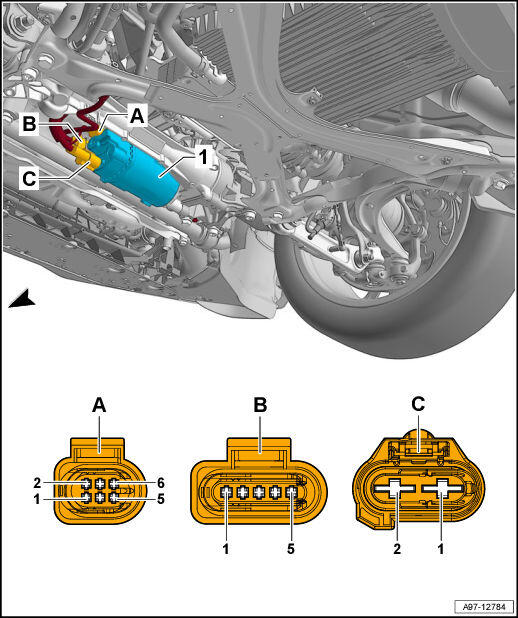

Fig 1: Power Steering Control Module -J500- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Power Steering Control Module -J500-
2. A -  6-Pin Connector -T6f-, brown
3. B -  5-Pin Connector -T5bf-, black
   • to Steering Torque Sensor -G269-
4. C -  2-Pin Connector -T2el-, black
