Structure-Borne Sound Control Module -J869- Component Location And Connector End View

NOTE:

Illustration below shows location for left-hand drive vehicles. In right-hand drive vehicles, installation is mirror-inverted.

Component Location

In plenum chamber.

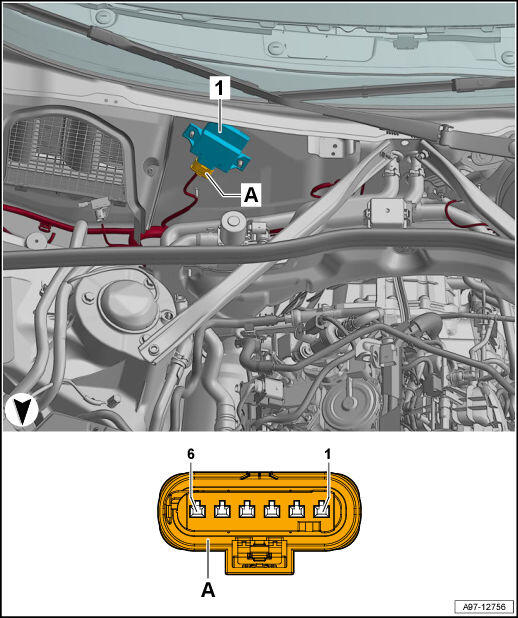

Fig 1: Structure-Borne Sound Control Module -J869- Component Location And Connector End View
GWWA97-12756Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Structure-Borne Sound Control Module -J869-
  2. A -  6-Pin Connector -T6i-, black
