Thermal Management Control Module -J1024- Component Location And Connector End View: Notes

Component Location

In fender front left.

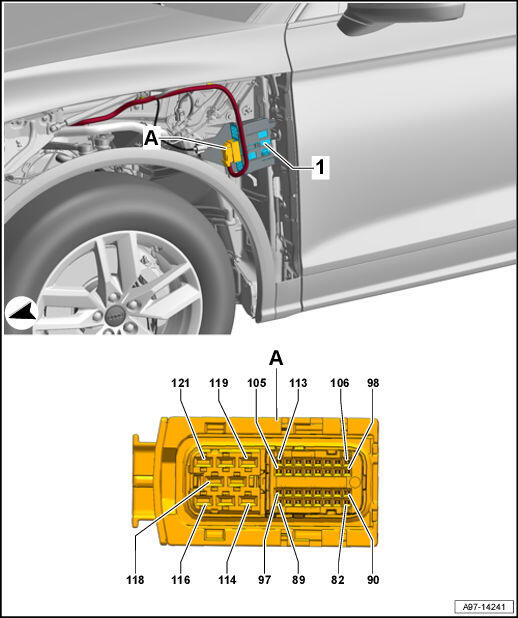

Fig 1: Thermal Management Control Module -J1024- Component Location And Connector End View
GWWA97-14241Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Thermal management control module -J1024-
  2. A -  40-Pin Connector -T40e-, black
