Wiper Motor Control Module -J400- Component Location And Connector End View: Notes

NOTE:

Illustration below shows location for left-hand drive vehicles. In right-hand drive vehicles, installation is mirror-inverted in plenum. The pin arrangements are also different Pin Arrangements, Right-Hand Drive, Wiper Motor Control Module -J400- .

Component Location

In plenum chamber, left.

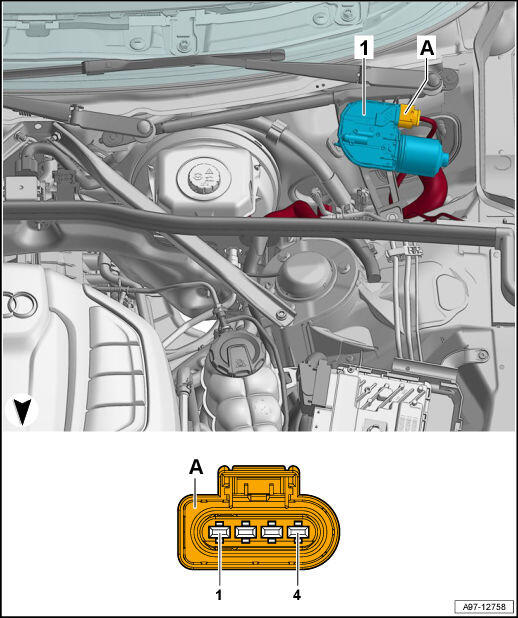

Fig 1: Wiper Motor Control Module -J400- Component Location And Connector End View
GWWA97-12758Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Wiper Motor Control Module -J400-
  2. A -  4-Pin Connector -T4fr-, black
