Airbag Control Module -J234- Component Location And Connector End View

Component Location

Below center console.

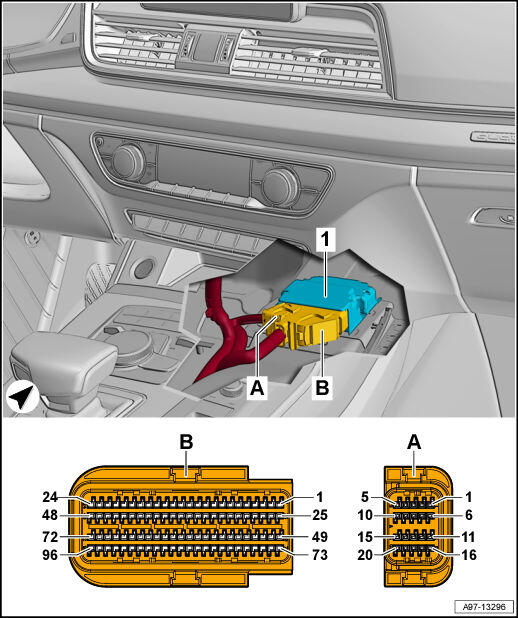

Fig 1: Airbag Control Module -J234- Component Location And Connector End View
GWWA97-13296Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Airbag Control Module -J234-
  2. A -  20-Pin Connector -T20-, yellow
  3. B -  96-Pin Connector -T96-, yellow
