Chip Card Reader Control Module -J676- Component Location And Connector End View

Component Location

In glove compartment

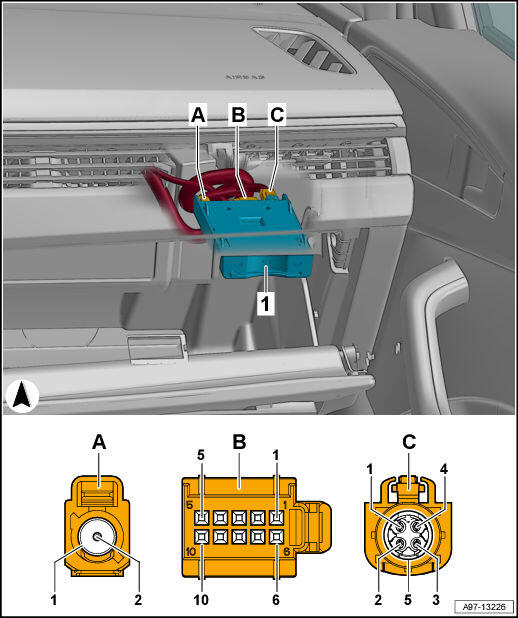

Fig 1: Chip Card Reader Control Module -J676- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Chip Card Reader Control Module -J676-
2. A -  2-Pin Connector -T2ig-, yellow
3. B -  10-Pin Connector -T10x-, black
4. C -  4-Pin Connector -T4fu-, brown
   • USB connection
   • Through June 2020
5. C -  5-Pin Connector -T5dk-, brown
   • USB connection
   • from June 2020
