Close Range Communication Control Module -J1169- Component Location And Connector End View: Notes

Component Location

In the front door.

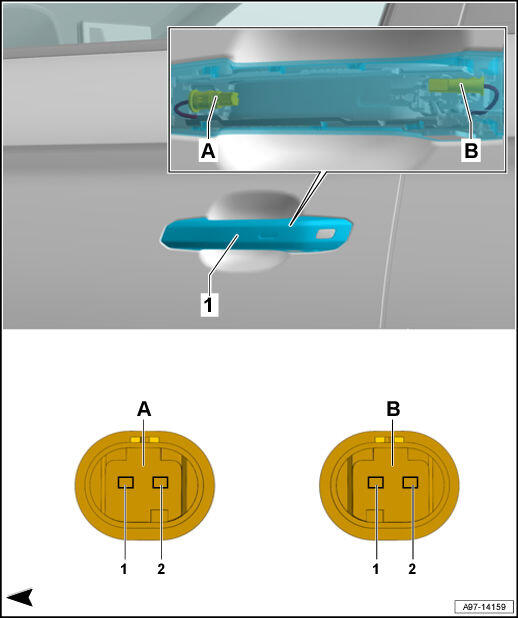

Fig 1: Close Range Communication Control Module -J1169- Component Location And Connector End View
GWWA97-14159Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Close Range Communication Control Module -J1169-
  2. A -  2-Pin Connector -T2nc-, black
  3. B -  2-Pin Connector -T2nb-, dark brown
