Close Range Communication Control Module 2 -J1170- Component Location And Connector End View: Notes

Component Location

Below center console.

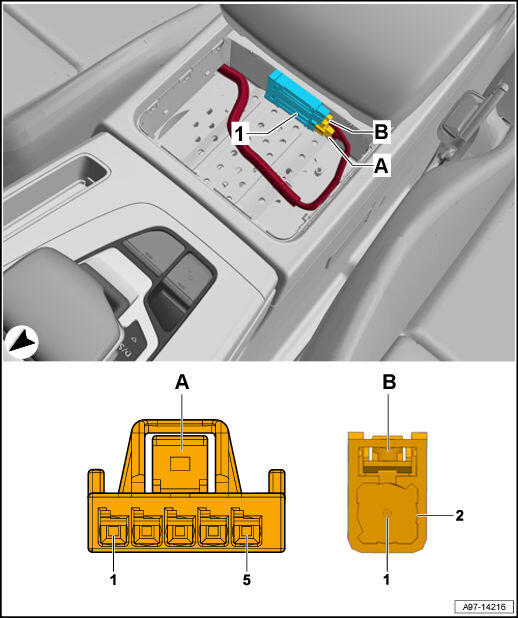

Fig 1: Close Range Communication Control Module 2 -J1170- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Close Range Communication Control Module 2 -J1170-
2. A -  5-Pin Connector -T5cc-, black
3. B -  2-Pin Connector -T2nf-, black
