Driver Assistance Systems Front Camera -R242- Component Location And Connector End View: Notes

Component Location

Near interior mirror.

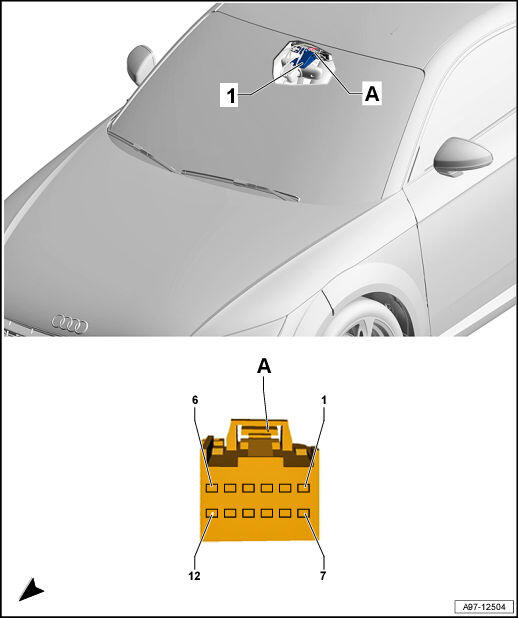

Fig 1: Driver Assistance Systems Front Camera -R242- Component Location And Connector End View
GWWA97-12504Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Driver assistance systems front camera -R242-
  2. A -  12-Pin Connector -T12k-, black
