Drivetrain Control Module -J775- Component Location And Connector End View: Notes

Component Location

Below front center console on centre tunnel.

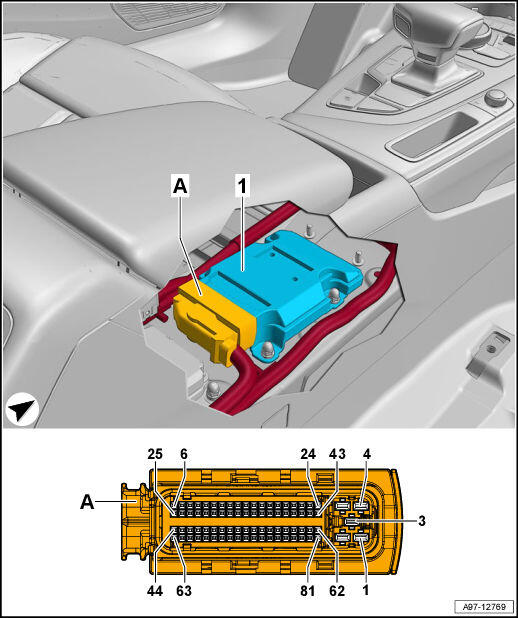

Fig 1: Drivetrain Control Module -J775- Component Location And Connector End View
GWWA97-12769Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Drivetrain control module -J775-
  2. A -  81-Pin Connector -T81-, black
