Fresh Air Blower Control Module -J126- Component Location And Connector End View: Notes

Component Location

Behind glove compartment, on front heater and air conditioner unit.

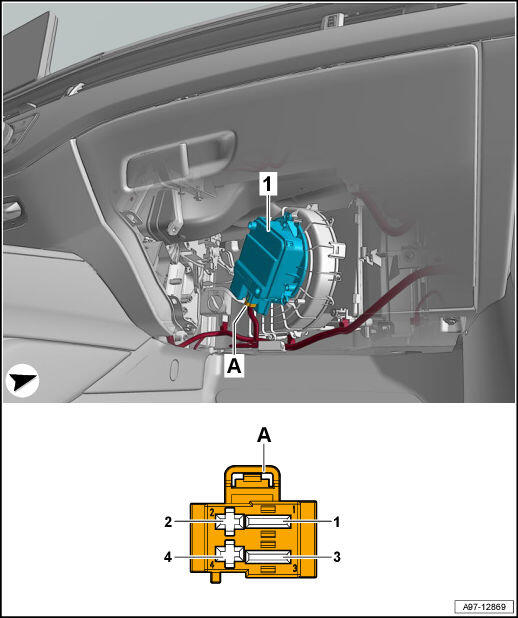

Fig 1: Fresh Air Blower Control Module -J126- Component Location And Connector End View
GWWA97-12869Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Fresh Air Blower Control Module -J126-
  2. A -  4-Pin Connector -T4bc-, black
