Front Passenger's Door Control Module -J387- Component Location And Connector End View: Notes

Component Location

In front passenger's door

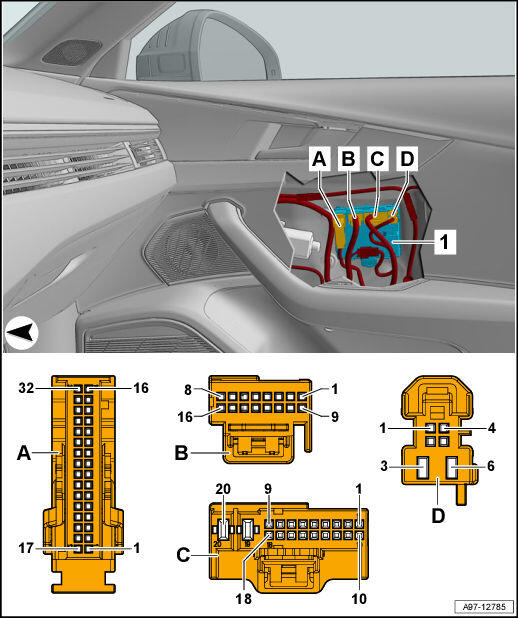

Fig 1: Front Passenger's Door Control Module -J387- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Front Passenger's Door Control Module -J387-
2. A -  32-Pin Connector -T32b-, blue
3. B -  16-Pin Connector -T16cd-, white
4. C -  20-Pin Connector -T20r-, white
5. D -  6-Pin Connector -T6r-, black
