Fuel Pump (FP) Control Module -J538- Component Location And Connector End View: Notes

Component Location

Below trim / right rear wheel housing.

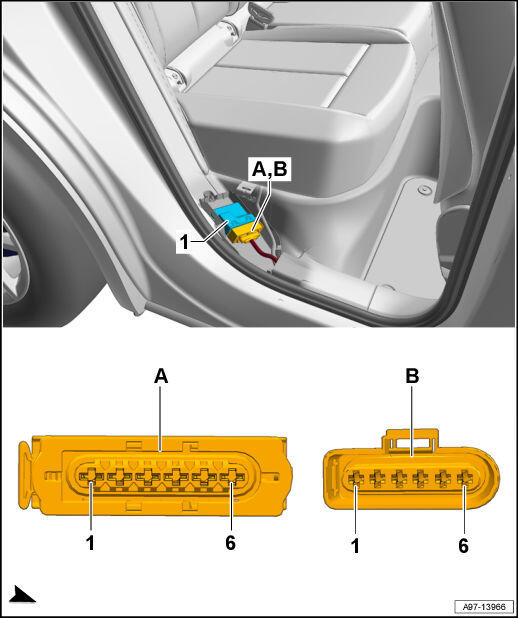

Fig 1: Fuel Pump (FP) Control Module -J538- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Fuel Pump (FP) Control Module -J538-
2. A -  6-Pin Connector -T6bl-, black
   • for vehicles with 6 cylinder engine
3. B -  6-Pin Connector -T6bl-, black
   • for vehicles with 4 cylinder engine
