Memory Seat/Steering Column Adjustment Control Module -J136- / Passenger Memory Seat Control Module -J521- Component Location And Connector End View: Notes

Component Location

At bottom of seat.

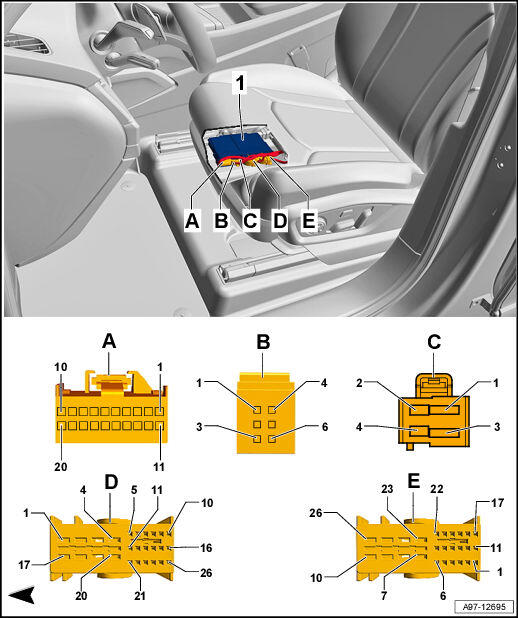

Fig 1: Memory Seat/Steering Column Adjustment Control Module -J136- / Passenger Memory Seat Control Module -J521- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Memory Seat/Steering Column Adjustment Control Module -J136- / Passenger Memory Seat Control Module -J521-
2. A -  20-Pin Connector -T20a- / -T20b-, black
3. B -  Not used
4. C -  4-Pin Connector -T4aa- / -T4ab-, black
5. D -  26-Pin Connector -T26b- / -T26c-, blue
6. E -  26-Pin Connector -T26- / -T26a-, white
