Multi-Function Steering Wheel Control Module -J453- Component Location And Connector End View: Notes

Component Location

On Steering Wheel.

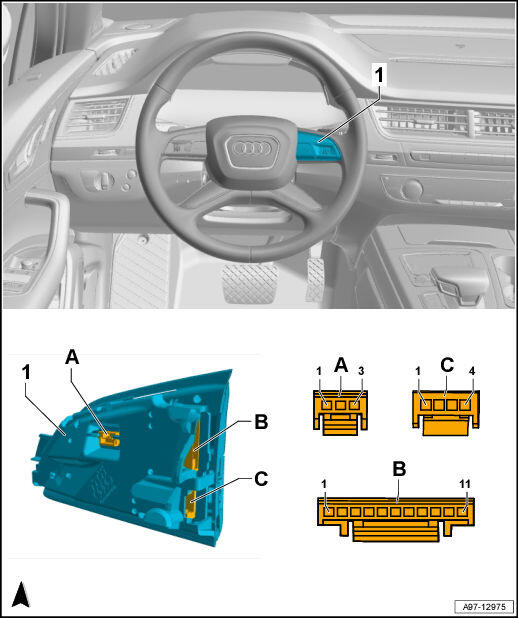

Fig 1: Multi-Function Steering Wheel Control Module -J453- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Multi-function Steering Wheel Control Module -J453-
   • Right Multi-function Buttons (on steering wheel) -E441- integrated
2. A -  3 Pin Connector --, white
   • Connector for Tiptronic Upshift Button -E479-
3. B -  11-Pin Connector --, white
   • Connector for Left Multi-function Buttons (on steering wheel) -E440-
4. C -  4-Pin Connector -T4co-, white
   • On wiring harness 4-Pin Connector -T4co-, black
