Power Adjustable Steering Column Control Module -J866- Component Location And Connector End View: Notes

Component Location

On steering column.

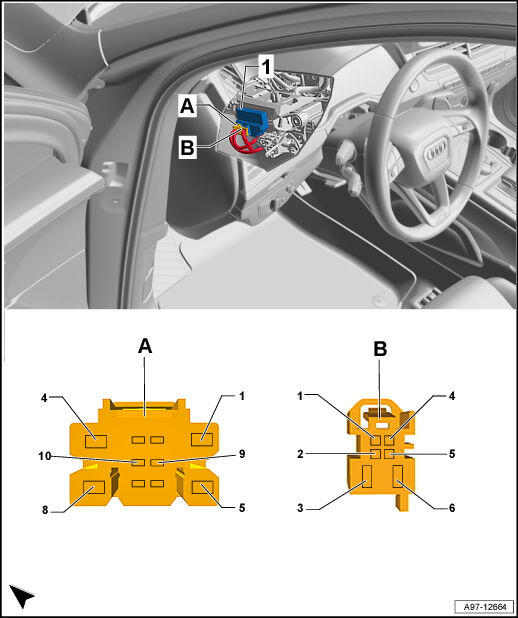

Fig 1: Power Adjustable Steering Column Control Module -J866- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Power Adjustable Steering Column Control Module -J866-
2. A -  Ignore
3. B -  6-Pin Connector -T6co-, brown
   • deviating installation position
