Rear Door Control Module, Driver's Side -J926- Component Location And Connector End View: Notes

Component Location

In rear door, driver's side.

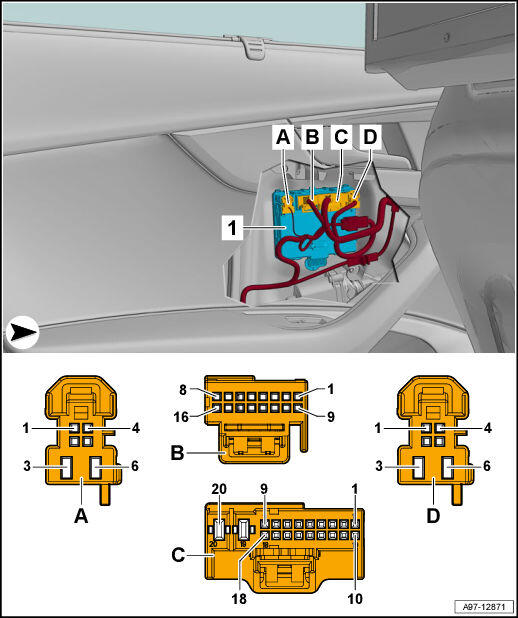

Fig 1: Rear Door Control Module, Driver's Side -J926- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Rear Door Control Module, Driver's Side -J926-
2. A -  6-Pin Connector -T6ao-, brown
3. B -  16-Pin Connector -T16h-, black
4. C -  20-Pin Connector -T20hl-, white
5. D -  6-Pin Connector -T6hl-, black
