Rear Front Passenger's Door Control Module -J927- Component Location And Connector End View: Notes

Component Location

In rear door, front passenger's side.

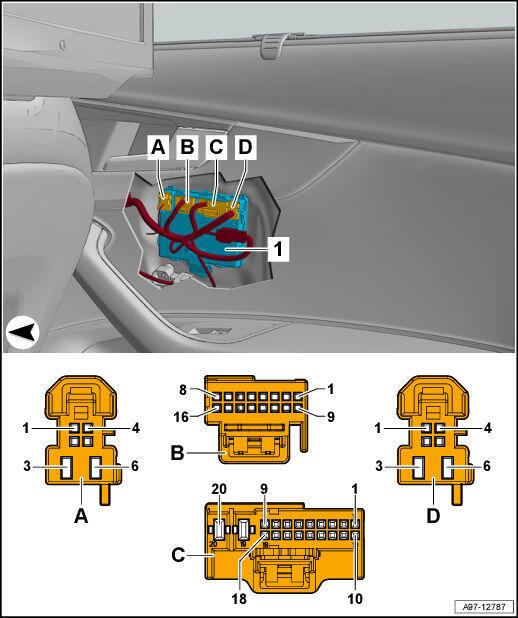

Fig 1: Rear Front Passenger's Door Control Module -J927- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Rear Front Passenger's Door Control Module -J927-
2. A -  6-Pin Connector -T6ap-, brown
3. B -  16-Pin Connector -T16i-, black
4. C -  20-Pin Connector -T20hr-, white
5. D -  6-Pin Connector -T6hr-, black
