Seat Occupied Recognition Control Module -J706- Component Location And Connector End View: Notes

Component Location

At bottom of seat.

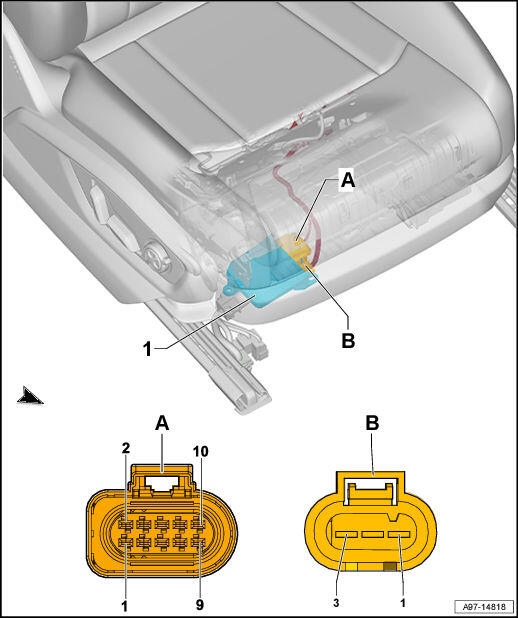

Fig 1: Seat Occupied Recognition Control Module -J706- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Seat Occupied Recognition Control Module -J706-
2. A -  10-Pin Connector -T10t-, black
3. B -  3-Pin Connector -T3at-, black
