Steering Column Electronic Systems Control Module -J527- Component Location And Connector End View: Notes

Component Location

On steering column.

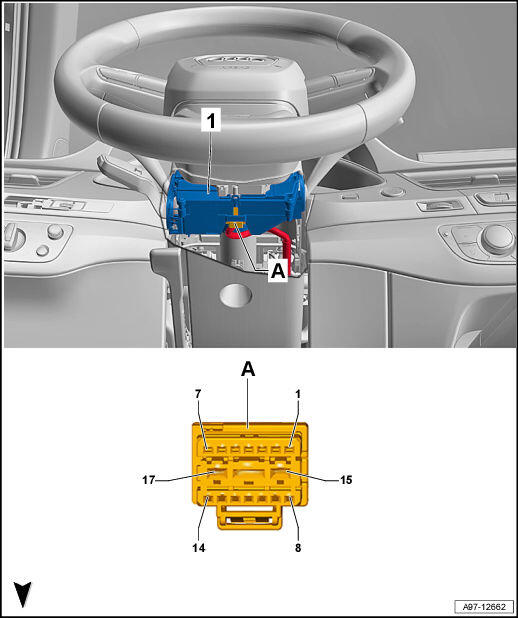

Fig 1: Steering Column Electronic Systems Control Module -J527- Component Location And Connector End View
GWWA97-12662Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Steering Column Electronic Systems Control Module -J527-
  2. A -  17-Pin Connector -T17c-, yellow
