Vehicle Electrical System Control Module -J519- Component Location And Connector End View: Notes

Component Location

On A-pillar, left.

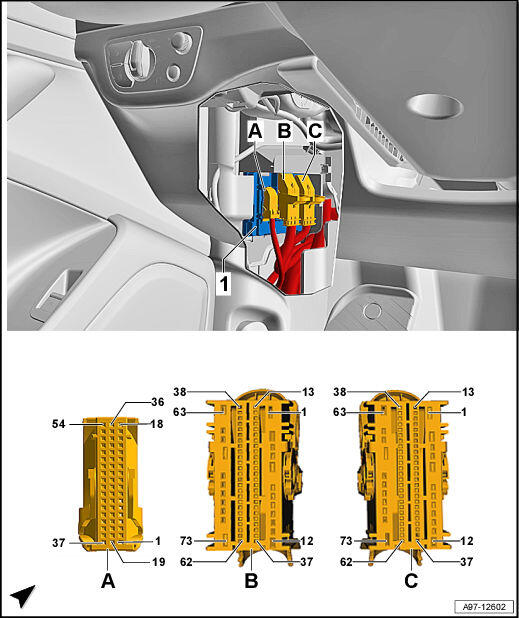

Fig 1: Vehicle Electrical System Control Module -J519- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Vehicle Electrical System Control Module -J519-
2. A -  54-Pin Connector -T54c- (connector C), black
3. B -  73-Pin Connector -T73a- (connector A), black
4. C -  73-Pin Connector -T73b- (Connector B), black
