Windshield Projection Head Up Display Control Module -J898- Component Location And Connector End View: Notes

Component Location

In driver's instrument panel.

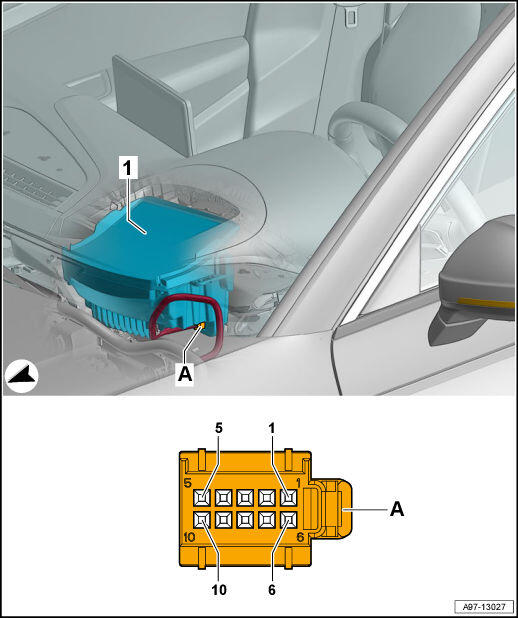

Fig 1: Windshield Projection Head Up Display Control Module -J898- Component Location And Connector End View
GWWA97-13027Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Windshield Projection Head Up Display Control Module -J898-
  2. A -  10-Pin Connector -T10d-, black
