Amplifier For Telephone -R86- Component Location And Connector End View: Notes

Component Location

In right luggage compartment, behind side panel trim.

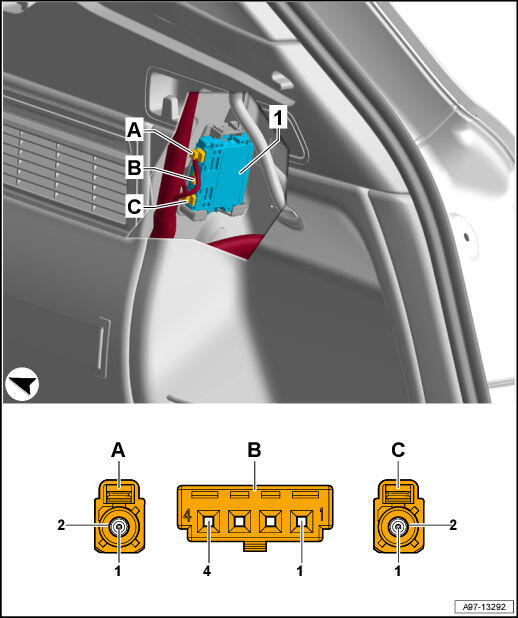

Fig 1: Amplifier For Telephone -R86- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Amplifier for Telephone -R86-
2. A -  2-Pin Connector -T2hw-, purple, yellow, naturally cloudy
   • Through June 2020
3. A -  2-Pin Connector -T2nkb-, purple
   • from June 2020
   • only with (GB1)
4. A -  2-Pin Connector -T2nkc-, naturally cloudy
   • from June 2020
   • only with (GB2)
5. A -  2-Pin Connector -T2nkd-, yellow
   • from June 2020
   • only with (GB3)
6. B -  4-Pin Connector -T4br-, black
7. C -  2-Pin Connector -T2hv-, black
