Auxiliary Heater RF Receiver -R64- Component Location And Connector End View: Notes

Component Location

In right luggage compartment, behind side panel trim.

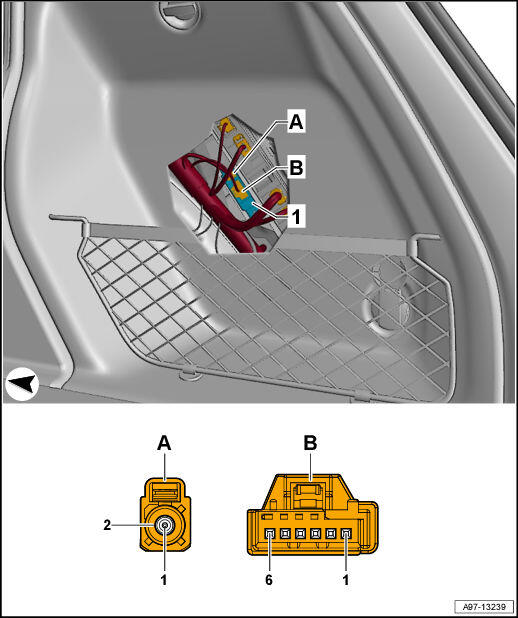

Fig 1: Auxiliary Heater RF Receiver -R64- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Auxiliary Heater RF Receiver -R64-
2. A -  2-Pin Connector -T2dc-, naturally cloudy
3. B -  6-Pin Connector -T6y-, blue
