Comfort System Central Control Module -J393- Component Location And Connector End View: Notes

Component Location

In left luggage compartment, behind side panel trim

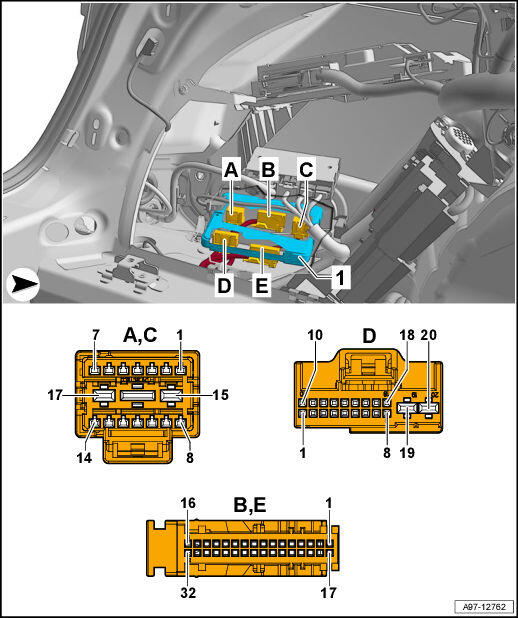

Fig 1: Comfort System Central Control Module -J393- Component Location And Connector End View

Courtesy of AUDI OF AMERICA, LLC

1. 1 -  Comfort System Central Control Module -J393-
2. A -  17-Pin Connector -T17a- (connector A), brown
3. B -  32-Pin Connector -T32c- (connector C), black
4. C -  17-Pin Connector -T17b- (Connector B), black
5. D -  20-Pin Connector -T20e- (Connector E), black
6. E -  32-Pin Connector -T32d- (connector D), blue
