Differential Lock Control Module -J187- Component Location And Connector End View: Notes

Component Location

In luggage compartment.

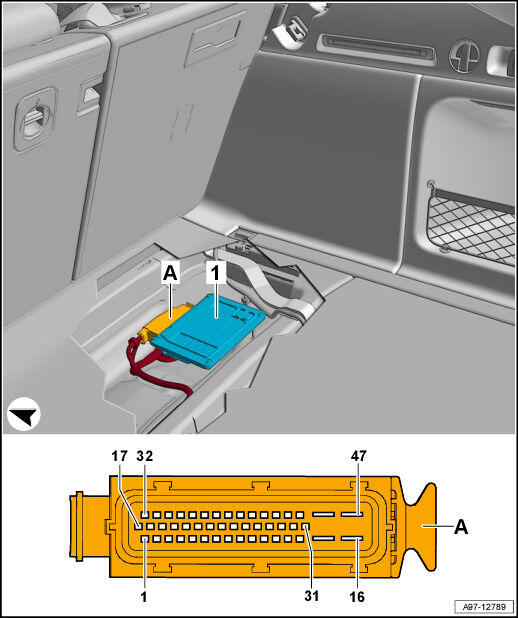

Fig 1: Differential Lock Control Module -J187- Component Location And Connector End View
GWWA97-12789Courtesy of AUDI OF AMERICA, LLC
  1. 1 -  Differential lock control module -J187-
  2. A -  47-Pin Connector -T47a-, black
